BL1557

高带宽,双通道,单刀双掷

产品简介

The BL1557 is a dual, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. The BL1557 can handle both analog and digital signals. It features high bandwidth (400MHz) and low on-resistance (3.5Ω TYP).

优势特点
  •  Wide Power Supply Range:1.8V to 5.5V
  •  On-Resistance: 3.5Ω(TYP) at 5.0V
  •  Low On-Resistance Flatness
  •  High Bandwidth: 400MHz
  •  Break-Before-Make Switching
  •  Rail-to-Rail Signal Range
  •  High Off-Isolation: -75dB (f=1MHz)
  •  Crosstalk Rejection: -98dB (f=1MHz)
  •  Operation Temperature Range: -40°C to +125°C

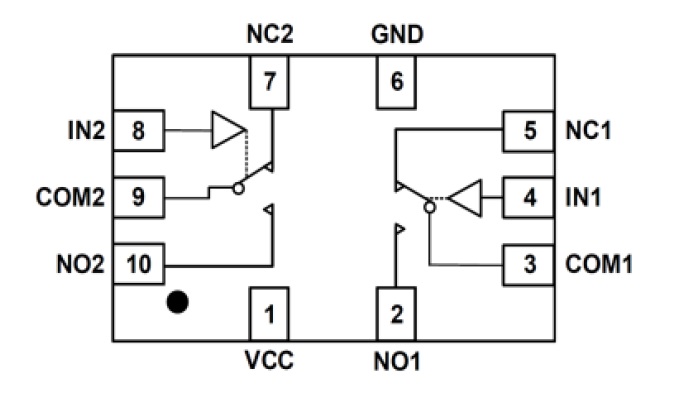

应用电路

产品手册
